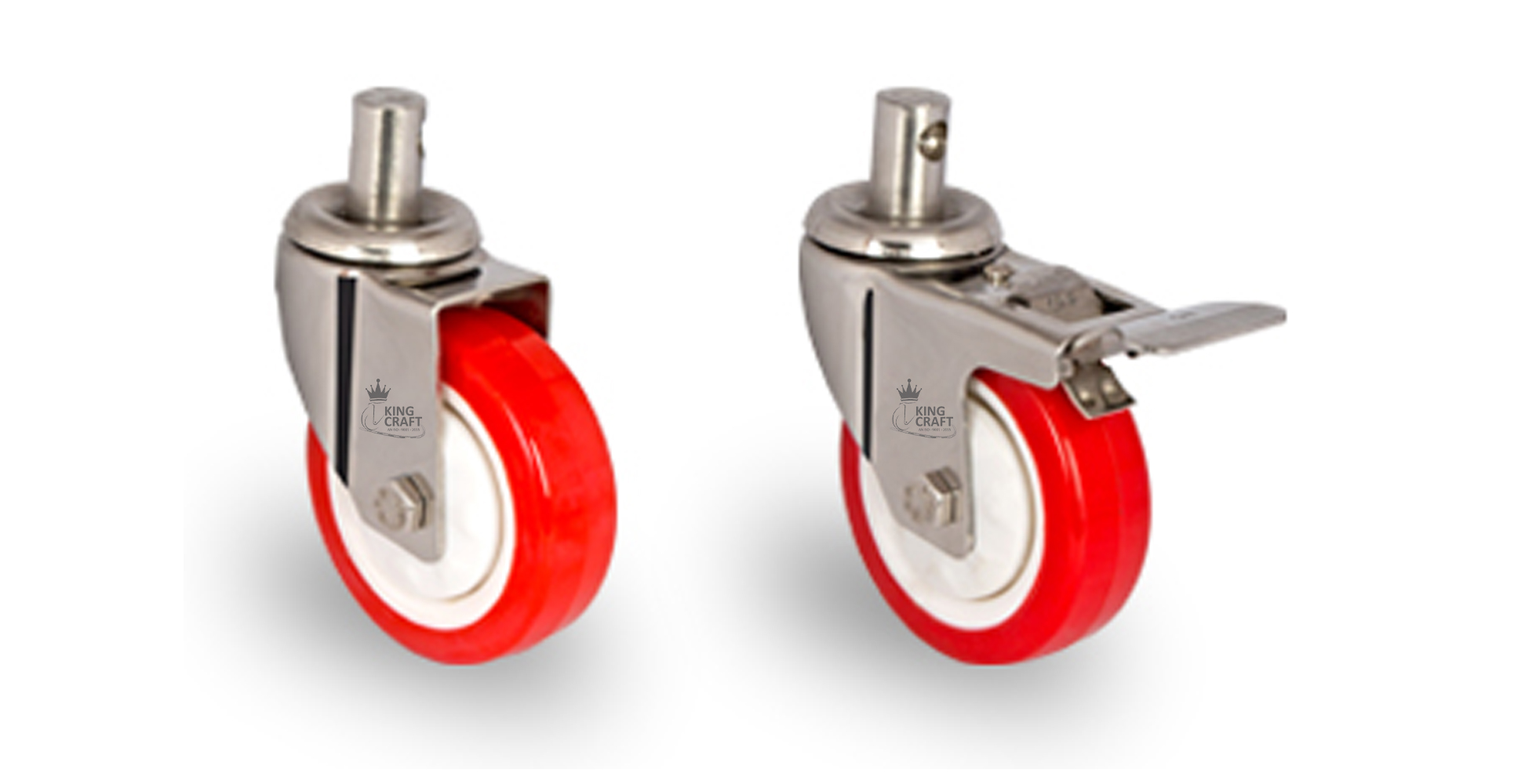

BRACKET :- Zinc Platteed Die Pressed models in Swivel,Swivel with Lock & Fix Bracket. Swivel type model contain double ball bearing type with Dual Lock Mechanism i.e Total Lock and the Body Structure is Constructed by Die pressed with Center body revit
PU WHEELS:- High Quality Polyurethane Wheels Hardness 90 Shore A & 95 Shore A, Low Rolling resistance, Non-marking, Non-staining and Strongly inseparable connection with the Wheel centre.
# Also Available in Stud Type ie:- M10, M12, Type
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Model No | Dia | Width | Pin Dia | Pin Height | Total | Dynamic | Static | Wheel |
---|---|---|---|---|---|---|---|---|
Size | Height | (KG) | (KG) | Bearing | ||||
ZPD/50x25/PT/PU | 50 | 25 | 21 | 38 | 70 | 30 | 40 | Single |
ZPD/75x32/PT/PU | 75 | 32 | 21 | 38 | 105 | 40 | 60 | Single |
ZPD/100x32/PT/PU | 100 | 32 | 21 | 38 | 125 | 70 | 90 | Single |
ZPD/125x32/PT/PU | 125 | 32 | 21 | 38 | 155 | 100 | 130 | Single |
