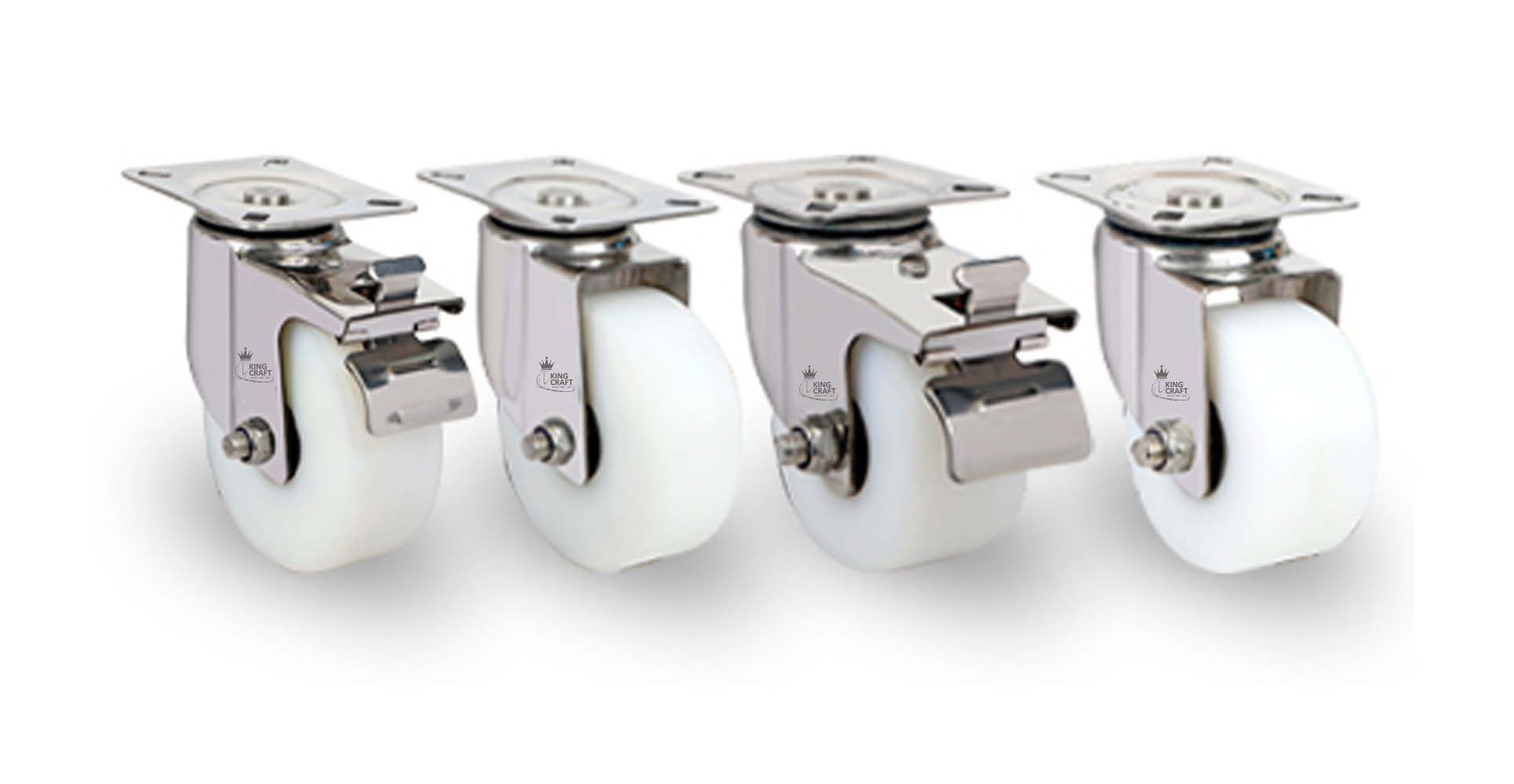

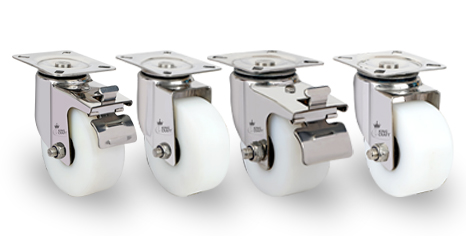

SS Die Pressed Caster On Polypropelene Wheels
BRACKET :- Stainless Steel (AISI304) Die Pressed models in Swivel,Swivel with Lock & Fix Bracket. Swivel type model contain double ball bearing type with Dual Lock Mechanism i.e Total Lock and the Body Structure is Constructed by Die pressed with Center body revit.
PP WHEELS:-
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model No | Dia | Width | Plate | Bolt Hole | Hole | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Size | Height | (KG) | (KG) | Bearing | |||
| SSD/100x25/PT/PP | 100 | 50 | 94 x 94 | 70 x 70 | 9 | 130 | 110 | 135 | Double |
| SSD/125x50/PT/PP | 125 | 50 | 120 x 94 | 92 x 70 | 9 | 155 | 135 | 160 | Double |
| SSD/150x50/PT/PP | 150 | 50 | 120 x 94 | 92 x 70 | 9 | 185 | 150 | 190 | Double |
