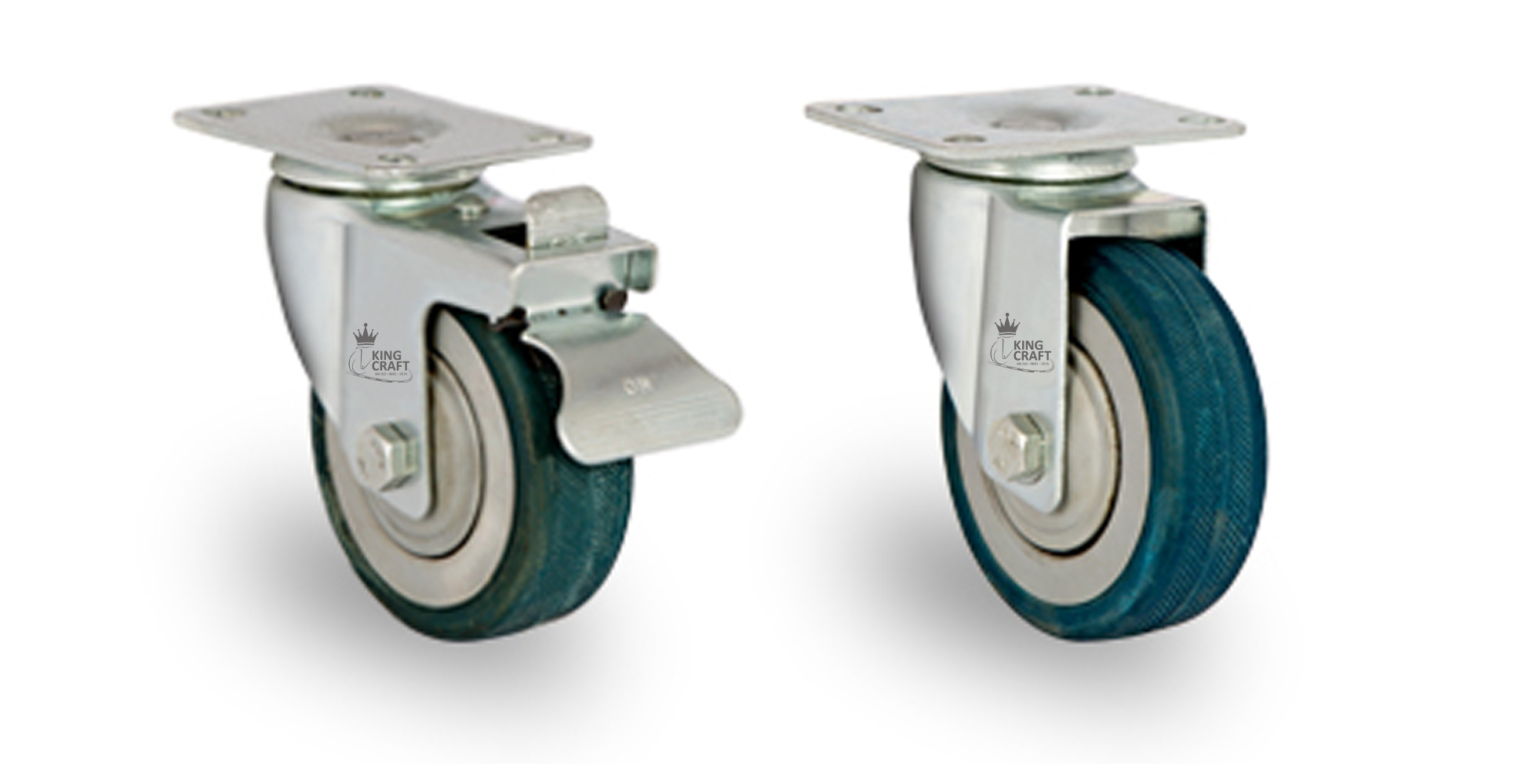

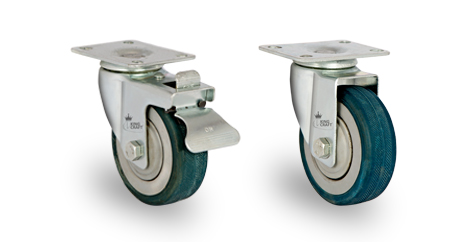

Zinc Plated Die Pressed Caster On Blue Rubber Wheels
Plate Type
BRACKET :- Zinc Platteed Die Pressed models in Swivel,Swivel with Lock & Fix Bracket. Swivel type model contain double ball bearing type with Dual Lock Mechanism i.e Total Lock and the Body Structure is Constructed by Die pressed with Center body revit
RUBBER WHEELS:- High Quality Rubber Wheels with Double Ball Bearing.
# Also Available in Stud Type ie:- M10, M12
# Also Available in Pin Type ie:- 22mm Dia Pin
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model No | Dia | Width | Plate | Bolat Hole | Hole | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Size | Height | (KG) | (KG) | Bearing | |||
| ZPD/75x32/PT/PP | 75 | 32 | 70 x 95 | 46 x 74 | 9 | 105 | 40 | 60 | Double |
| ZPD/100x32/PT/BR | 100 | 32 | 70 x 95 | 46 x 74 | 9 | 125 | 70 | 90 | Double |
| ZPD/125x32/PT/BR | 125 | 32 | 70 x 95 | 46 9x 74 | 9 | 155 | 100 | 130 | Double |
