More Specification
Model No Dia Width Plate Bolt Hole Hole Total Dynamic Static Wheel Size Spacing Size Height (KG) (KG) Bearing SSD/50x25/PT/PU 50 25 51 x 70 35 x 53 8 70 30 40 Single SSD/75x32/PT/PU 75 32 70 x 95 46 x 74 9 105 40 60 Single SSD/100x32/PT/PU 100 32 70 x 95 46 x 74 9 125 70 90 Single SSD/125x32/PT/PU 125 32 70 x 95 46 x 74 9 155 100 130 Single
- Unit No. 55, Phase II,
- Parmar Techno Center, Vasai Phata,
Vasai (East)-401208
- Send your mail at
- kingcraftindustries@gmail.com
- Contact Number
- +91 8007162569
- +91 9920915359
Plate Type
Plate Type

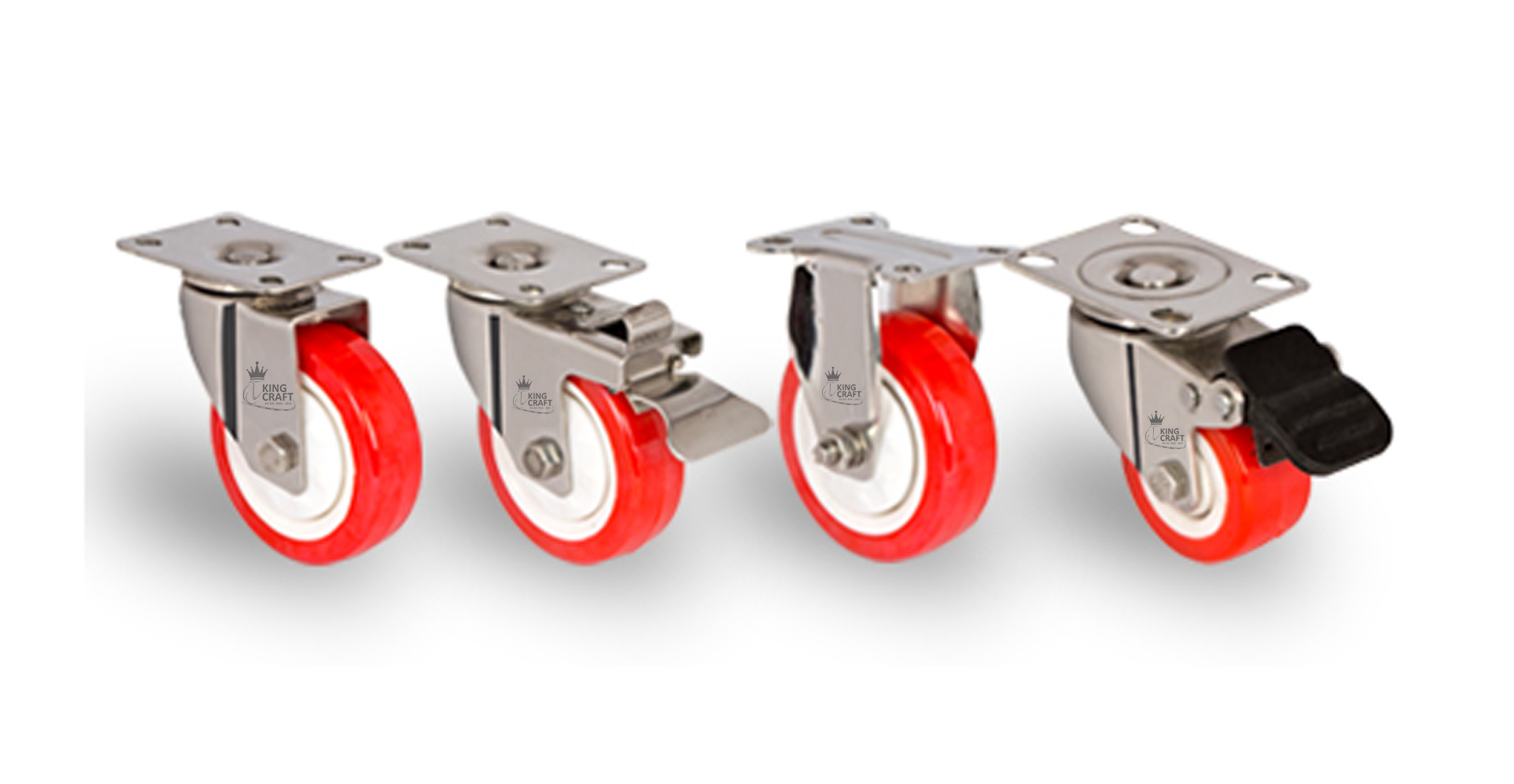

BRACKET :- Stainless Steel (AISI304) Die Pressed models in Swivel,Swivel with Lock & Fix Bracket. Swivel type model contain double ball bearing type with Dual Lock Mechanism i.e Total Lock and the Body Structure is Constructed by Die pressed with Center body revit.
PU WHEELS:- High Quality Polyurethane Wheels Hardness 90 Shore A & 95 Shore A, Low Rolling resistance, Non-marking, Non-staining and Strongly inseparable connection with the Wheel centre.

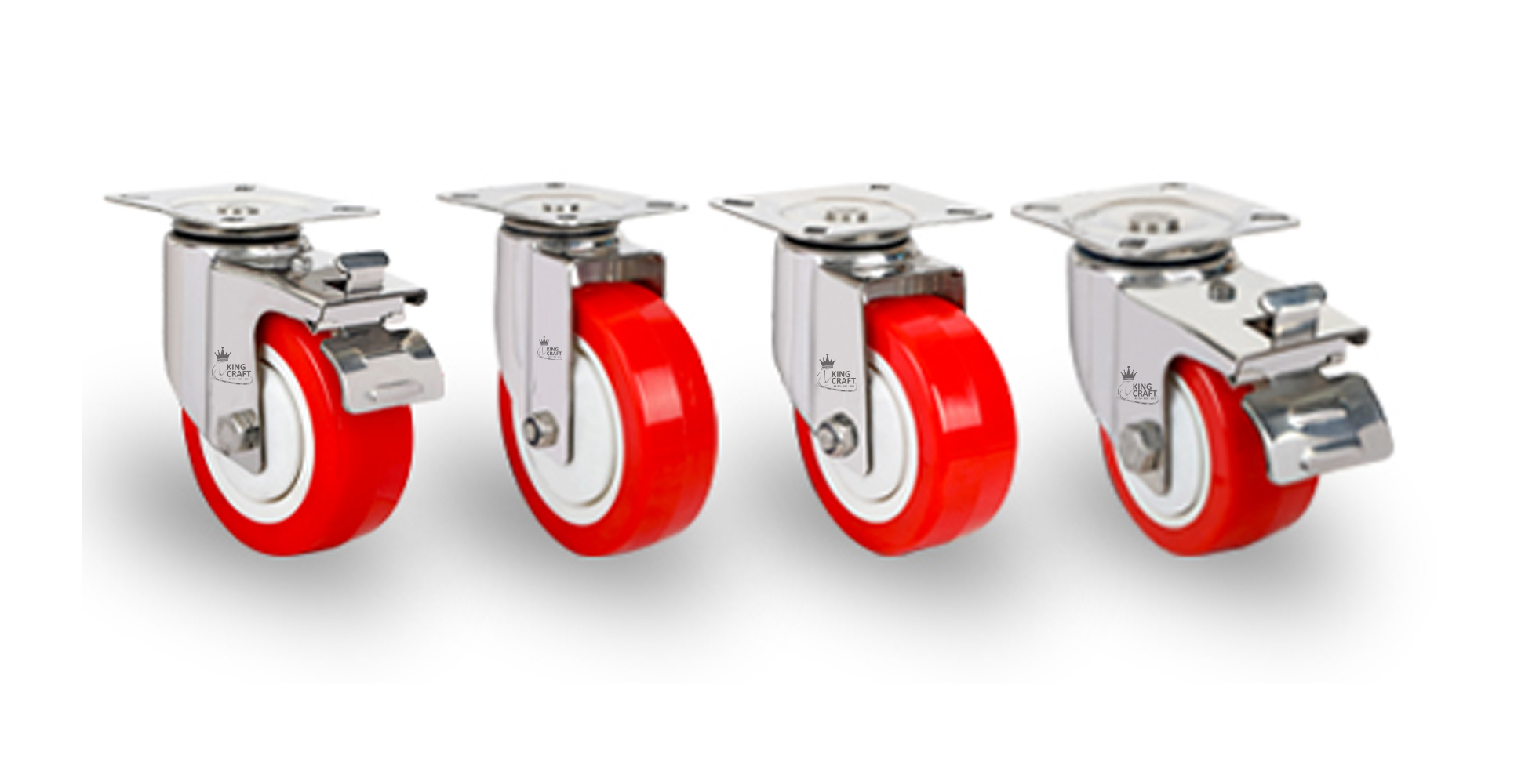

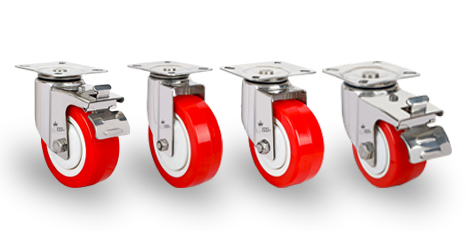

BRACKET :- Stainless Steel (AISI304) Die Pressed models in Swivel,Swivel with Lock & Fix Bracket. Swivel type model contain double ball bearing type with Dual Lock Mechanism i.e Total Lock and the Body Structure is Constructed by Die pressed with Center body revit.
PU WHEELS:- High Quality Polyurethane Wheels Hardness 90 Shore A & 95 Shore A, Low Rolling resistance, Non-marking, Non-staining and Strongly inseparable connection with the Wheel centre.
-
More Specification
Model No Dia Width Plate Bolt Hole Hole Total Dynamic Static Wheel Size Spacing Size Height (KG) (KG) Bearing SSD/100x25/PT/PU 100 50 94 x 94 70 x 70 9 130 100 125 Double SSD/125x50/PT/PU 125 50 120 x 94 92 x 70 9 155 125 150 Double SSD/150x50/PT/PU 150 50 120 x 94 92 x 70 9 185 140 180 Double
