Heavy Duty

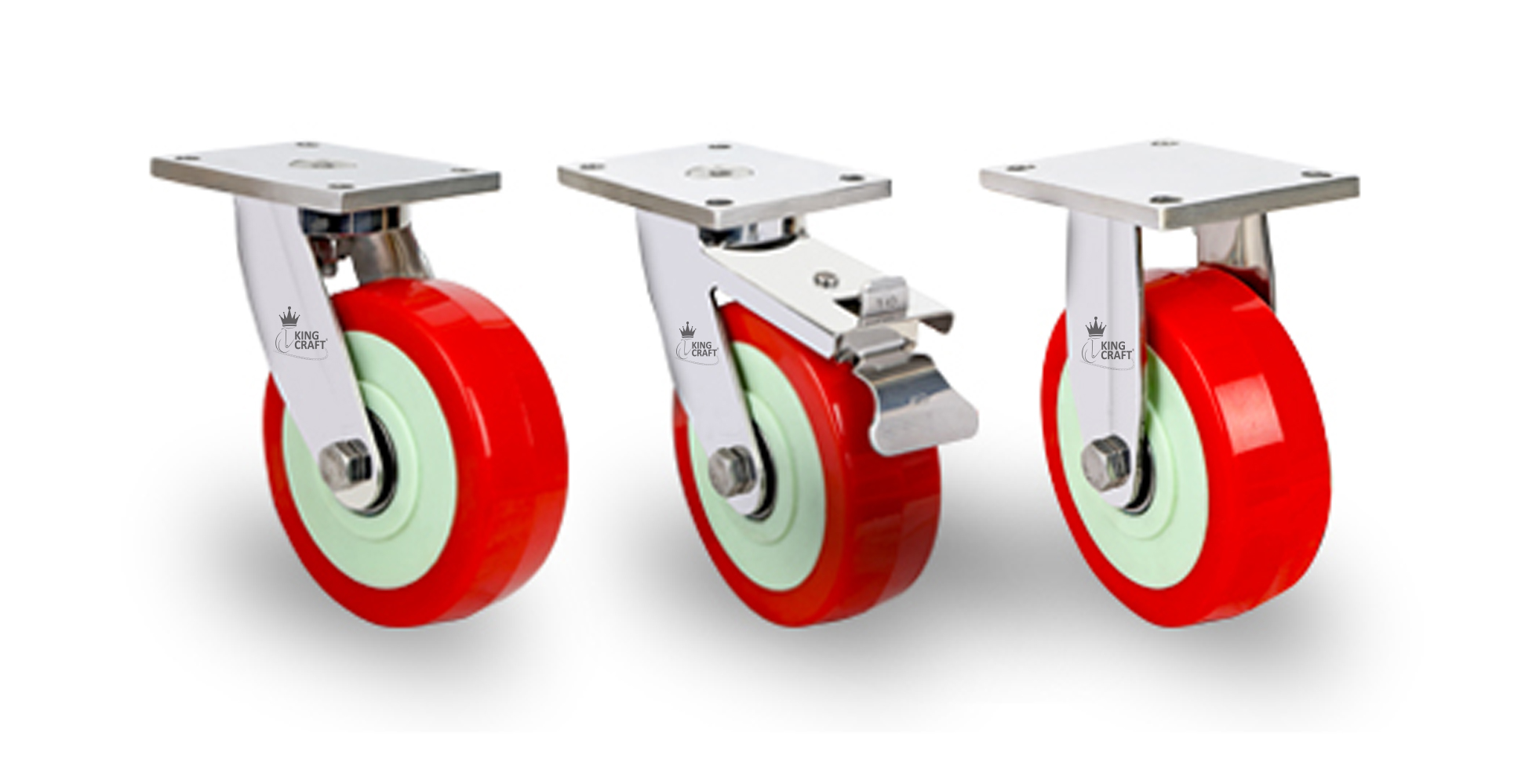

Heavy Duty - Plate Type

BRACKET:- Stainless Steel (AISI304) Medium Duty particularly robust welded construction, Swivel bracket with ball bearing in the swivel head, bolted and secured central king pin extremely strong, bolted wheel axle with self locking nut, cotter pin and slotted nut arrangement allow adjustment of swivel head play during usage.

PU WHEELS:- High Quality Polyurethane Wheels Hardness 90 Shore A & 95 Shore A, Low Rolling resistance, Non-marking, Non-staining and Strongly inseparable connection with the Wheel centre.

  • More Specification

    Model No Dia Width Plate Bolt Hole Hole Total Dynamic Static Wheel
    Size Spacing Size Height (KG) (KG) Bearing
    SS304HD/50X25/PT/PU 50 25 75 x 60 60 x 30 6 80 60 70 Double
    SS304HD/65X25/PT/PU 65 25 75 x 65 54 x 43 8 95 70 80 Double
    SS304HD/75X25/PT/PU 75 25 75 x 65 54 x 43 8 112 75 100 Double
    SS304HD/75X32/PT/PU 75 32 75 x 75 55 x 55 9 112 115 150 Double
    SS304HD/75X38/PT/PU 75 38 100 x 80 80 x 60 10 112 120 160 Double
    SS304HD/100X32/PT/PU 100 32 75 x 75 55 x 55 9 145 130 170 Double
    SS304HD/100X38/PT/PU 100 38 100 x 80 80 x 60 10 145 160 200 Double
    SS304HD/100X50/PT/PU 100 50 100 x 100 75 x 75 10 145 180 250 Double
    SS304HD/125X38/PT/PU 125 38 100 x 80 80 x 60 10 165 200 260 Double
    SS304HD/125X50/PT/PU 125 50 125 x 100 100 x 75 12 165 235 320 Double
    SS304HD/150X50/PT/PU 150 50 125 x 100 100 x 75 12 195 300 400 Double
    SS304HD/200X50/PT/PU 200 50 125 x 125 100 x 100 12 255 400 500 Double
    SS304HD/250X50/PT/PU 250 50 150 x 150 125 x 125 14 275 800 900 Double
    SS304HD/300X50/PT/PU 300 50 150 x 150 125 x 125 14 325 900 1050 Double

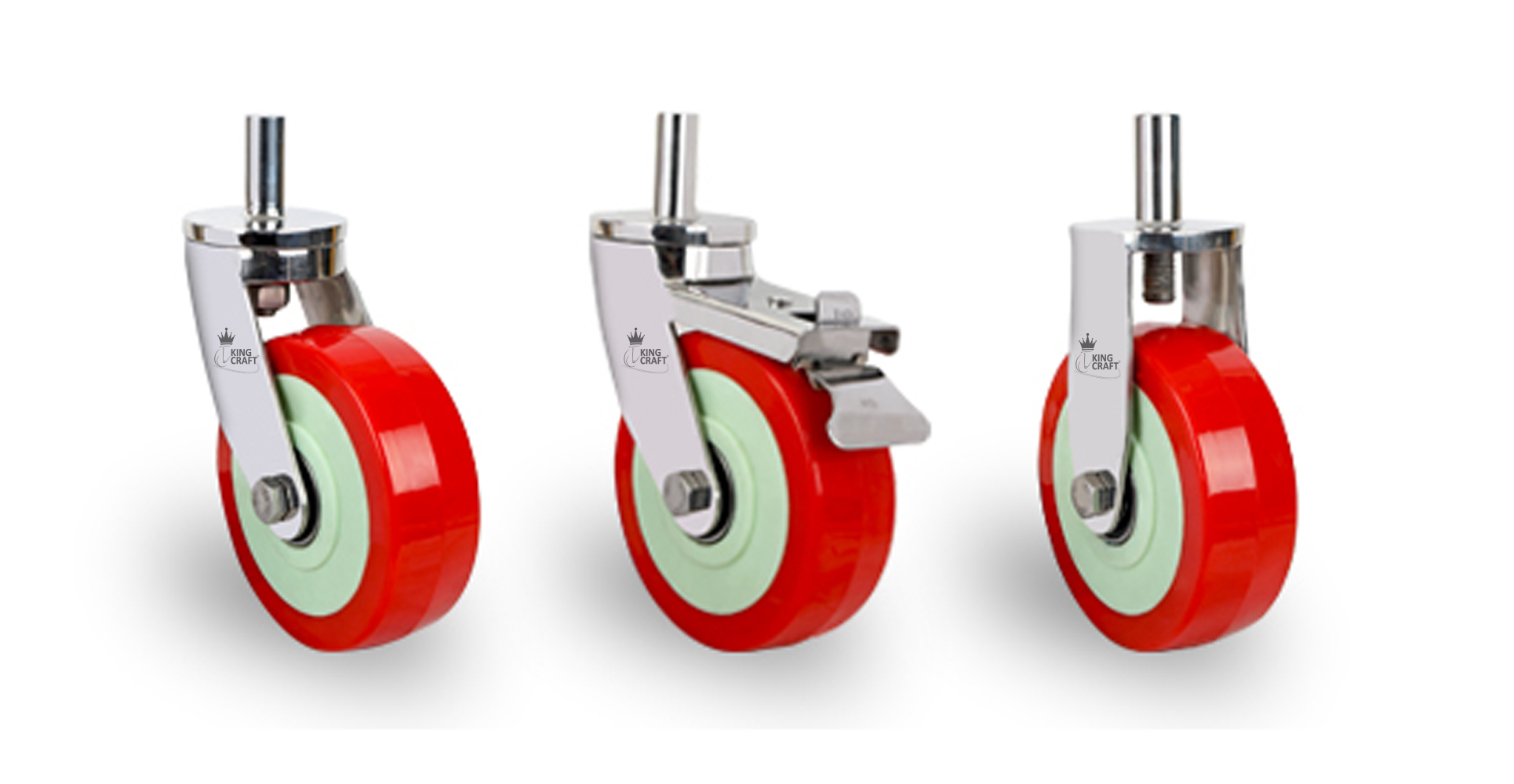

Heavy Duty - Pin Type

BRACKET:- Stainless Steel (AISI304) Medium Duty particularly robust welded construction, Swivel bracket with ball bearing in the swivel head, bolted and secured central king pin extremely strong, bolted wheel axle with self locking nut, cotter pin and slotted nut arrangement allow adjustment of swivel head play during usage.

PU WHEELS:- High Quality Polyurethane Wheels Hardness 90 Shore A & 95 Shore A, Low Rolling resistance, Non-marking, Non-staining and Strongly inseparable connection with the Wheel centre.

  • More Specification

    Model No Dia Width Pin Dia Pin Total Dynamic Static Wheel
    Size Height Height (KG) (KG) Bearing
    SS304HD/50X25/PI22/PU 50 25 22 50 80 60 70 Double
    SS304HD/65X25/PI22/PU 65 25 22 50 95 70 80 Double
    SS304HD/75X25/PI22/PU 75 25 22 50 112 75 100 Double
    SS304HD/75X32/PI22/PU 75 32 22 50 112 115 150 Double
    SS304HD/75X38/PI22/PU 75 38 22 50 112 120 160 Double
    SS304HD/100X32/PI22/PU 100 32 22 50 145 130 170 Double
    SS304HD/100X38/PI22/PU 100 38 22 50 145 160 200 Double
    SS304HD/100X50/PI22/PU 100 50 22 50 145 180 250 Double
    SS304HD/125X38/PI22/PU 125 38 22 50 165 200 260 Double
    SS304HD/125X50/PI22/PU 125 50 22 50 165 235 320 Double
    SS304HD/150X50/PI22/PU 150 50 22 50 195 300 400 Double
    SS304HD/200X50/PI32/PU 200 50 32 50 255 400 500 Double
    SS304HD/250X50/PI32/PU 250 20 32 50 275 800 900 Double
    SS304HD/300X50/PI32/PU 300 50 32 50 325 900 1050 Double

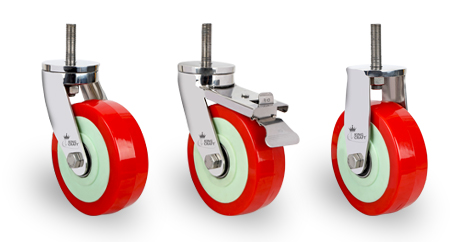

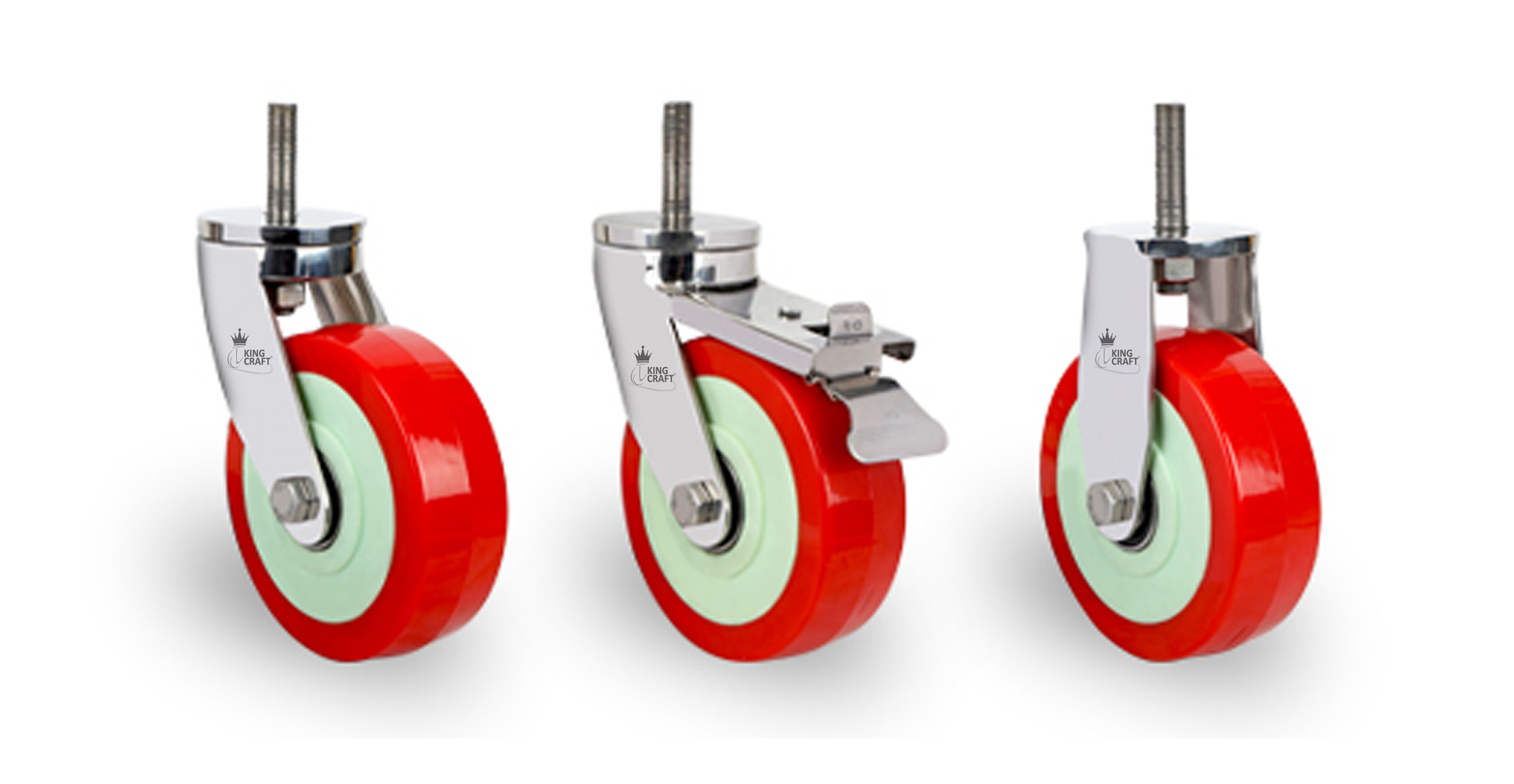

Heavy Duty - Stud Type

BRACKET:- Stainless Steel (AISI304) Medium Duty particularly robust welded construction, Swivel bracket with ball bearing in the swivel head, bolted and secured central king pin extremely strong, bolted wheel axle with self locking nut, cotter pin and slotted nut arrangement allow adjustment of swivel head play during usage.

PU WHEELS:- High Quality Polyurethane Wheels Hardness 90 Shore A & 95 Shore A, Low Rolling resistance, Non-marking, Non-staining and Strongly inseparable connection with the Wheel centre.

  • More Specification

    Model No Dia Width Stud Dia Stud Total Dynamic Static Wheel
    Size Height Height (KG) (KG) Bearing
    SS304HD/50X25/M12/PU 50 25 M12 50 80 60 70 Double
    SS304HD/65X25/M12/PU 65 25 M12 50 95 68 80 Double
    SS304HD/75X25/M12/PU 75 25 M12 50 112 75 100 Double
    SS304HD/75X32/M12/PU 75 32 M12 50 112 115 150 Double
    SS304HD/75X38/M12/PU 75 38 M12 50 112 120 160 Double
    SS304HD/100X32/M16/PU 100 32 M16 50 145 130 170 Double
    SS304HD/100X38/M16/PU 100 38 M16 50 145 160 200 Double
    SS304HD/100X50/M16/PU 100 50 M16 50 145 180 250 Double
    SS304HD/125X38/M16/PU 125 38 M16 50 165 200 260 Double
    SS304HD/125X50/M16/PU 125 50 M16 50 165 235 320 Double
    SS304HD/150X50/M24/PU 150 50 M24 70 195 300 400 Double
    SS304HD/200X50/M30/PU 200 50 M30 70 255 400 500 Double
    SS304HD/250X50/M30/PU 250 50 M30 70 275 800 900 Double
    SS304HD/300X50/M30/PU 300 50 M30 70 325 900 1050 Double
